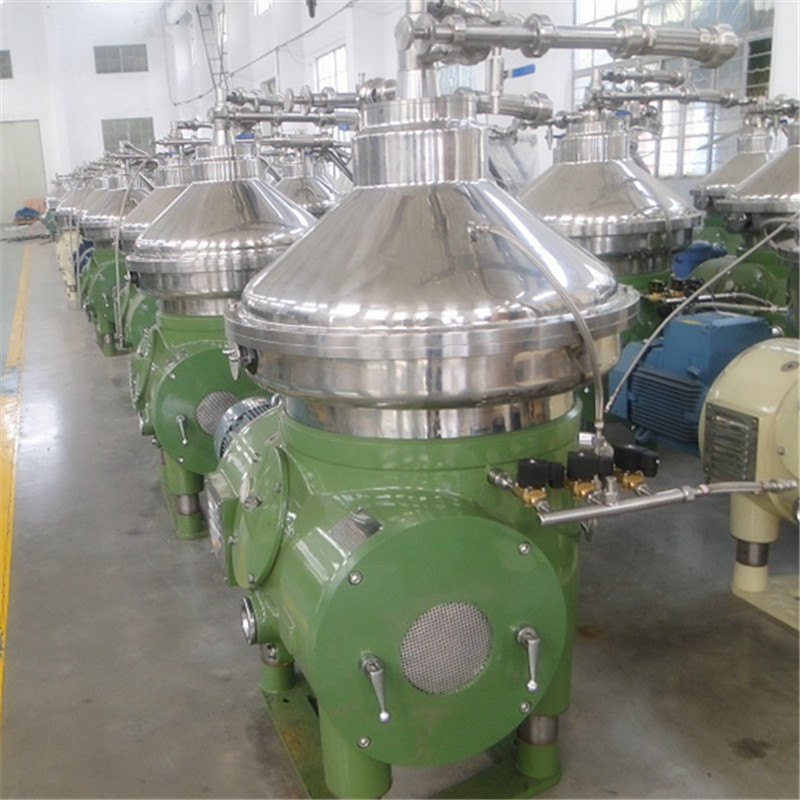

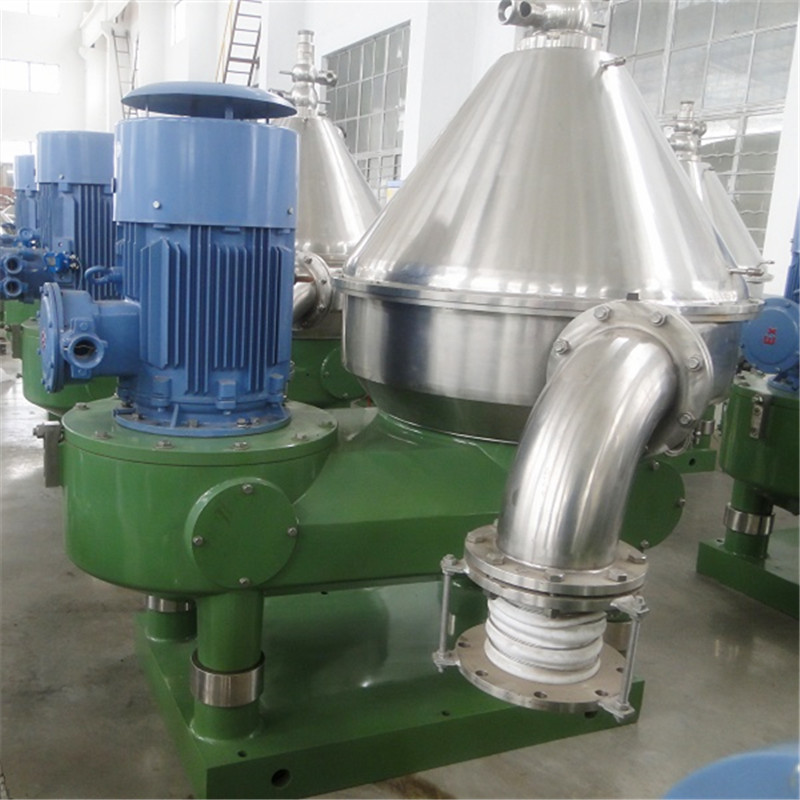

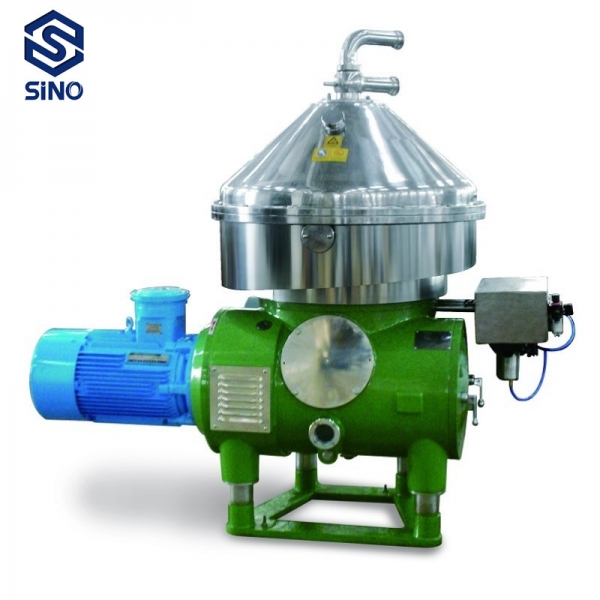

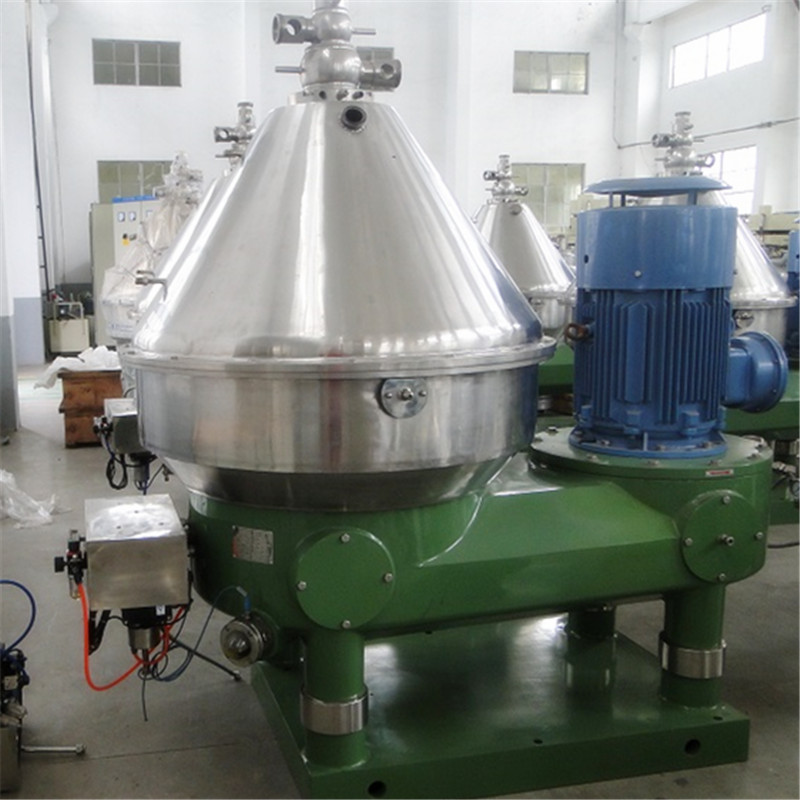

Disc stack centrifuge separator

This series disc stack centrifuge is specialized for liquid-liquid-solids separation. they are widely used in the field of food, beverage, chemical, pharm, energy.

Hot sale in the Separation of vegetable oil, biodiesel, glycerin, catalyst, crude oil ,soap, methanol methyl washing, extraction of fatty acids, glycerol desalination,starch, diary, animal oil, beer,beverage, biological, pharmaceutical, vegetable extraction, chemical, wast oil, mineral oil,marine…etc.

Category: Disc centrifuge Tag: Disc stack centrifuge separator
  • Description
  • Reviews (0)

Description

Product Description

Disc stack centrifuge can quickly and continuously separate solid-liquid and liquid-liquid. It is a kind of vertical centrifuge. The rotating drum is mounted on the upper end of the vertical shaft and is driven by a motor to rotate at a high speed through a transmission device. Inside the drum there is a group of disc-shaped parts that are nested together-discs. There is a small gap between the disc and the disc. The suspension (or emulsion) is fed into the drum from a feed tube located in the center of the drum. When the suspension (or emulsion) flows through the gap between the discs, the solid particles (or droplets) settle on the discs under the action of the centrifuge to form a sediment (or liquid layer). The sludge slides along the surface of the disc to separate from the disc and accumulate in the largest diameter part of the drum. The separated liquid is discharged from the liquid outlet to the drum. The function of the disc is to shorten the settlement distance of solid particles (or droplets) and expand the settlement area of ​​the drum. The installation of the disc in the drum greatly increases the production capacity of the separator. The solids accumulated in the drum can be removed manually after the separator is shut down by disassembling the drum, or discharged from the drum through the slag discharge mechanism without stopping the machine. Liquid-solid separation (that is, the separation of the bottom concentration suspension) is called the clarification operation.

Liquid-liquid separation (or liquid-liquid-solid) separation (ie separation of emulsion) is called separation operation.



Main Specification

Model Capacity (L/H) Inlet pressure Outlet pressure Motor power( Kw) Weight (kg) Dimension
SYN360 2000-5000 0.05 0.1-0.35 7.5 1200 1500*1150*1500
SYN470 5000-10000 0.05 0.1-0.4 15 1600 1800*1200*1800
SYN550 10000-20000 0.05 0.1-04 22 2300 1850*1550*2050
SYN616 25000-35000 0.1 0.3 37 3300 2050*1700*2300

* Solid-liquid separation

* Liquid-liquid separation

* Liquid-liquid-solid separation



Structure



Application

Hot sale in the Separation of vegetable oil, biodiesel, glycerin, catalyst, crude oil ,soap, methanol methyl washing, extraction of fatty acids, glycerol desalination,starch, diary, animal oil, beer,beverage, biological, pharmaceutical, vegetable extraction, chemical, wast oil, mineral oil,marine…etc.

application

Packing,Storage,Handling and Transportation

packing

Certificate

certificate

FAQ

Product Warranty:
The guarantee period is 12 months from the date of putting the equipment into operation, but not more than 15 months from the date of delivery.

Free service within warranty:
During a warranty period of exploitation the Seller undertakes to execute warranty service of the equipment, troubleshooting and replacement of out of service spares, except for breakings, bound with incorrect exploitation of the equipment by the Buyer.

Set-up and adjusting of the equipment
After receiving the delivered Goods, the Buyer is obliged to prepare, obtained equipment and applicable lodgment for its installation. Then in written form to inform the Seller on readiness of the equipment for chief- equipment installation, start-up and adjusting.
If necessary,The Seller should send enough technical specialists to help execute the chief – equipment installation, start-up and adjusting equipment on the sight of the Buyer.

Export Packing
The Goods are to be shipped in export packing suitable for the type of goods to be delivered. Packing is to protect the Goods against any damage or corrosion when the Goods are transported by sea or by railway and to provide for possible transshipment of the goods on the way to the place of destination and for a long storage of the goods.
