Yeast centrifuge

Description

Product Description

A necessary step in the yeast preparation process is to carry out the separation operation of the yeast to obtain the yeast components required after the culture. Water-saving yeast separator, including: separator main body and controller. The material phase inlet end of the separator main body is connected with a feed pipe, and a first electric control valve is installed on the feed pipe. The first electronic control valve is signally connected with the controller. The light phase outlet of the separator main body is connected with the phase discharge pipe, and the heavy phase outlet of the separator main body is connected with the inlet end of the buffer tank through the heavy phase discharge pipe. An electronic water level gauge is installed at the bottom of the buffer tank, and the electronic water level gauge is signally connected with the controller. The outlet end of the buffer tank is in communication with the feed pipe through a return pipe, and the communication position between the return pipe and the feed pipe is located between the first electronic control valve and the separator main body. A water pump is installed on the return pipe, and the signal input end of the water pump is signal connected with the signal output end of the controller. Our products can greatly reduce the water consumption during standby.



Main Specification

Model	Capacity (L/H)	Inlet pressure	Outlet pressure	Motor power( Kw)	Weight (kg)	Dimension
SYN360	2000-5000	0.05	0.1-0.35	7.5	1200	1500*1150*1500
SYN470	5000-10000	0.05	0.1-0.4	15	1600	1800*1200*1800
SYN550	10000-20000	0.05	0.1-04	22	2300	1850*1550*2050
SYN616	25000-35000	0.1	0.3	37	3300	2050*1700*2300

* Solid-liquid separation

* Liquid-liquid separation

* Liquid-liquid-solid separation

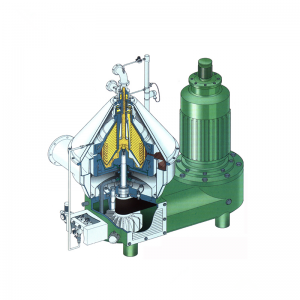

Structure



Application

Dairy separator: used for milk skimming or milk clarification (removal of solid impurities). The small separator is driven by hand and is used for manual slagging, which is suitable for farmers and herdsmen in pastoral areas; the large separator is used for industrial production and is driven by electricity. The slagging method is manual slagging or ring valve slagging.

Mineral oil separator: It is used to remove water and mechanical impurities from mineral oil such as fuel oil, diesel oil, lubricating oil and transformer oil, and can also separate similar emulsions.

Vegetable oil separator: used for the processing and refining of vegetable oil.

Animal oil separator: used for refining animal fats in meat processing, or used for concentration and separation of fish oil in aquatic processing.

Yeast separator: used to concentrate yeast and discharge slag from nozzles.



Packing,Storage,Handling and Transportation

Certificate

FAQ

Product Warranty:
The guarantee period is 12 months from the date of putting the equipment into operation, but not more than 15 months from the date of delivery.

Free service within warranty:
During a warranty period of exploitation the Seller undertakes to execute warranty service of the equipment, troubleshooting and replacement of out of service spares, except for breakings, bound with incorrect exploitation of the equipment by the Buyer.

Set-up and adjusting of the equipment
After receiving the delivered Goods, the Buyer is obliged to prepare, obtained equipment and applicable lodgment for its installation. Then in written form to inform the Seller on readiness of the equipment for chief- equipment installation, start-up and adjusting.
If necessary,The Seller should send enough technical specialists to help execute the chief – equipment installation, start-up and adjusting equipment on the sight of the Buyer.

Export Packing
The Goods are to be shipped in export packing suitable for the type of goods to be delivered. Packing is to protect the Goods against any damage or corrosion when the Goods are transported by sea or by railway and to provide for possible transshipment of the goods on the way to the place of destination and for a long storage of the goods.
